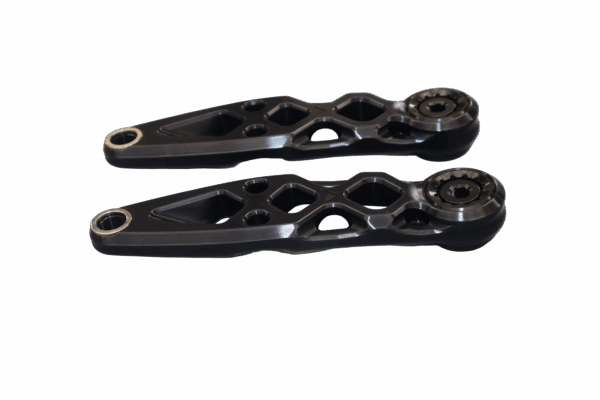

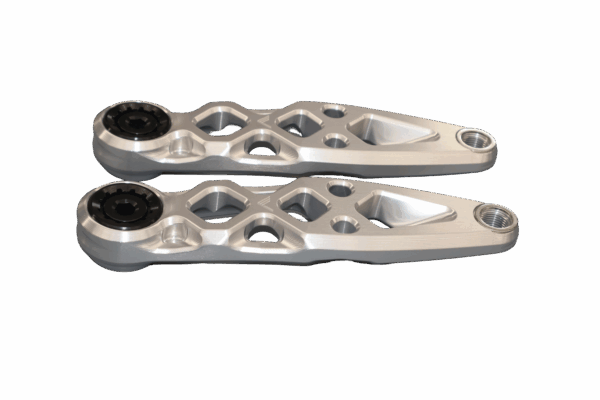

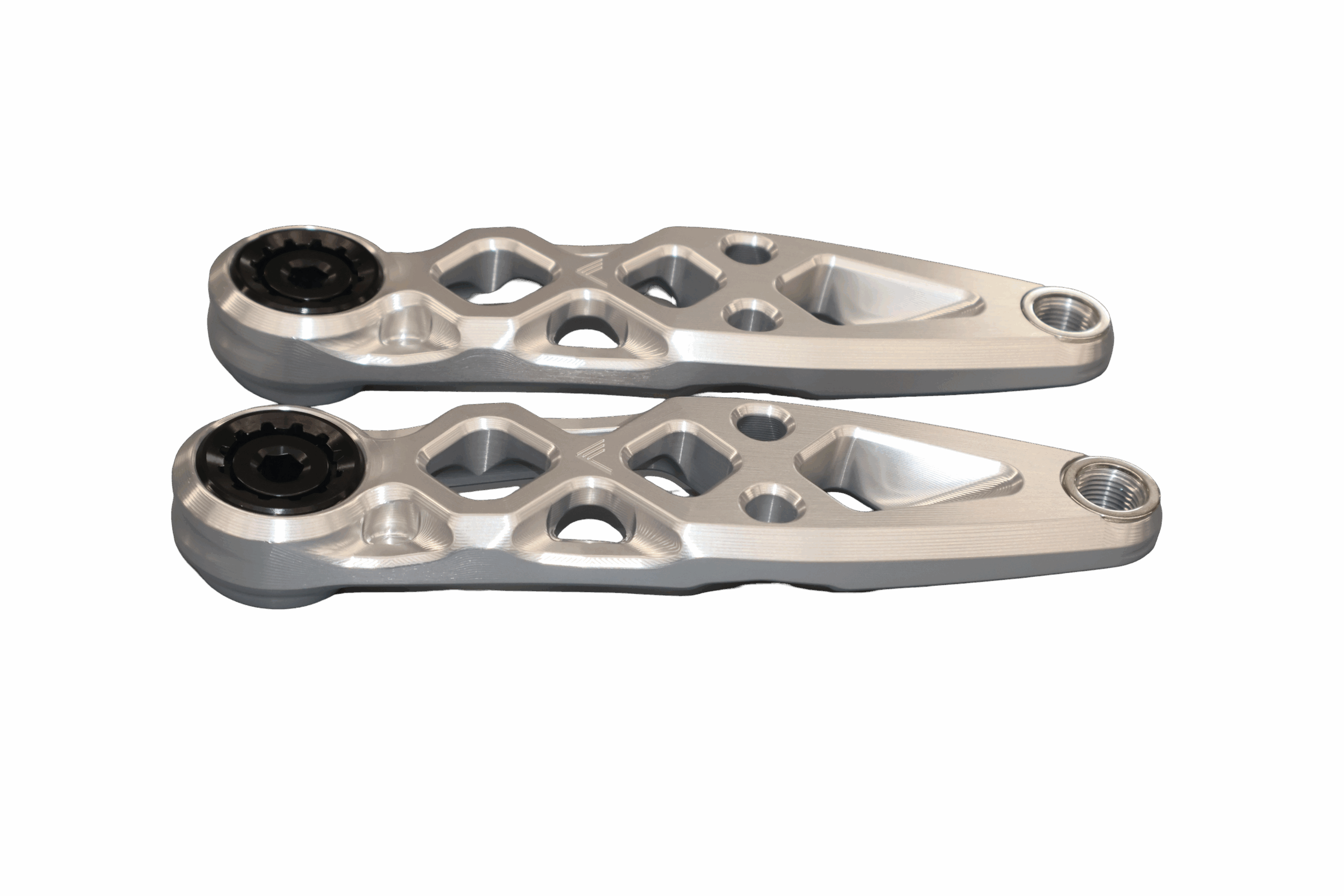

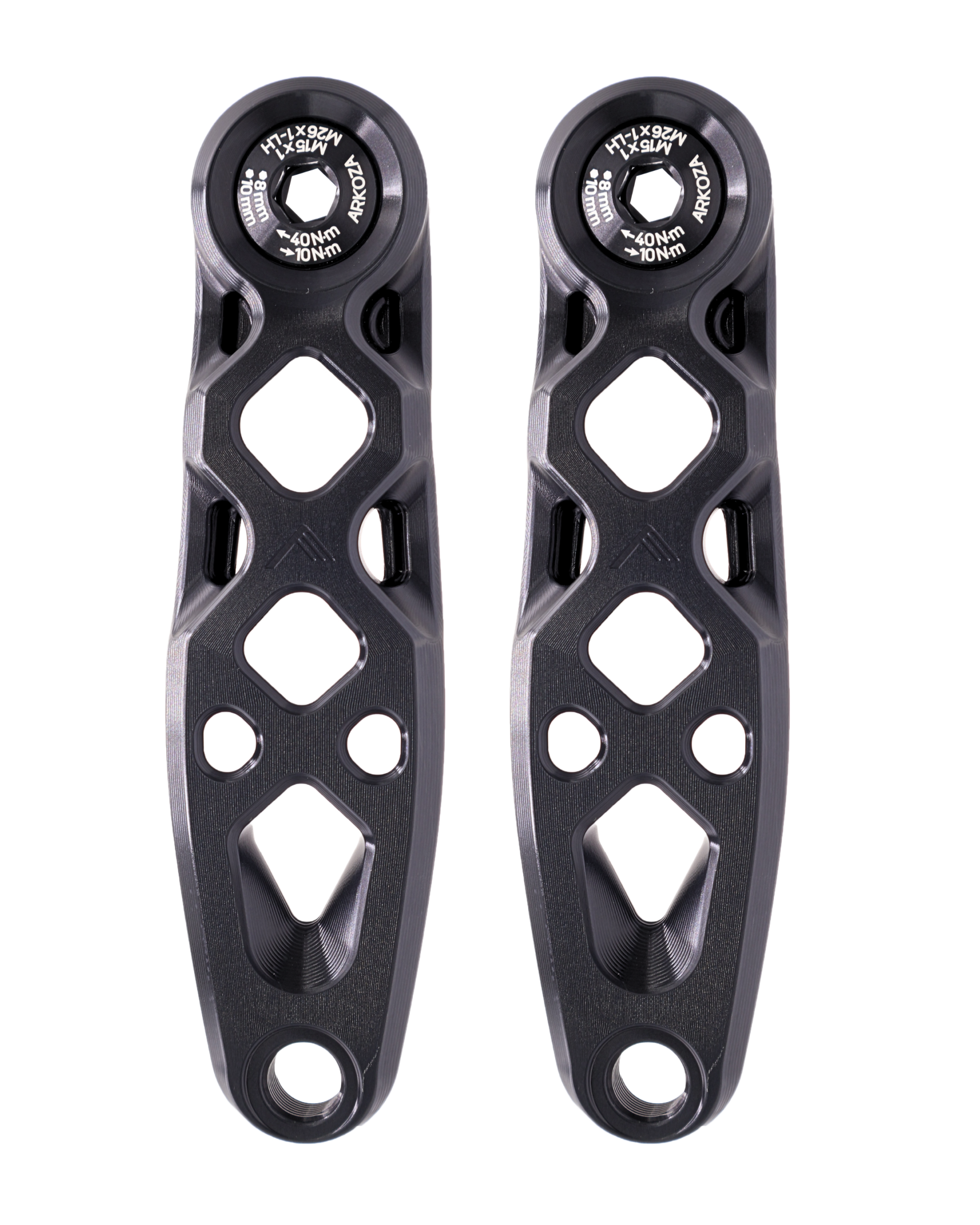

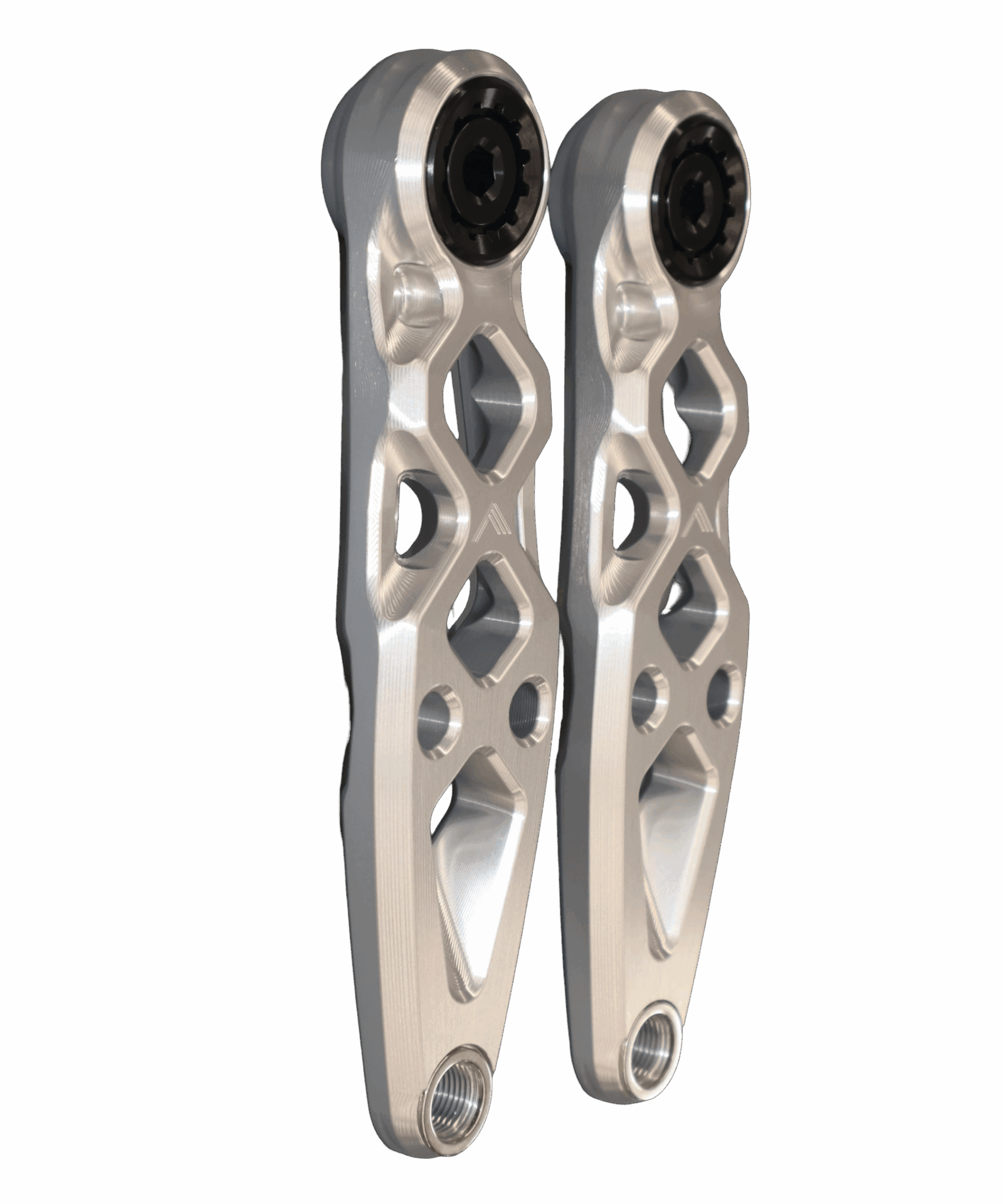

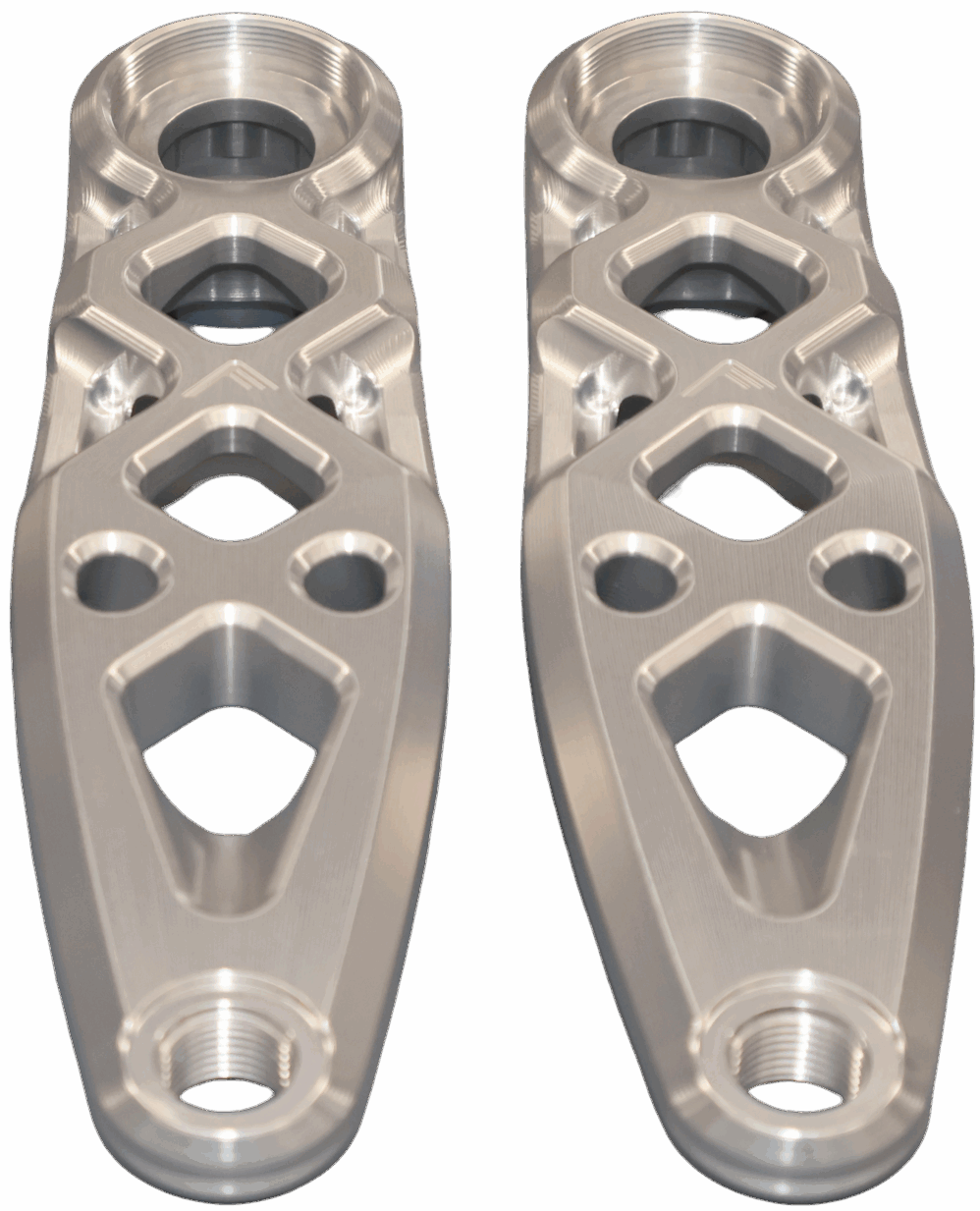

CØR-ET Crank Arms

$ 582.28

CNC-machined in Canada and tested to ISO 4210 standards. The CØR-ET is built for strength and durability, with a striking look for rides with a FAZUA Ride 60 motor. Available in 155 mm, 160 mm, and 165 mm lengths.

Shorter crank arms are designed to reduce pedal strikes during technical climbs and descents

  • Shorter length results in an inherently lighter and stiffer design than longer crank arms

Designed and manufactured in Canada

  • Tested and compliant to ISO 4210-8 (405 pounds of force applied 50,000 times)
  • Iterative topology study combined with finite element analysis used to create a unique, lightweight, safe and strong design

Easy installation with self-extracting hardware to facilitate quick removal of the crank arm

Technical Specifications
  •  Motor Compatibility: FAZUA RIDE 60
     Spindle: Cor-ETOR Drive Spindle
     Weights Without Hardware: 404 g, 415 g, 426 g ( From 155 mm – 165 mm lengths)
     Materials: Machined 7075 Grade T651 Aluminum

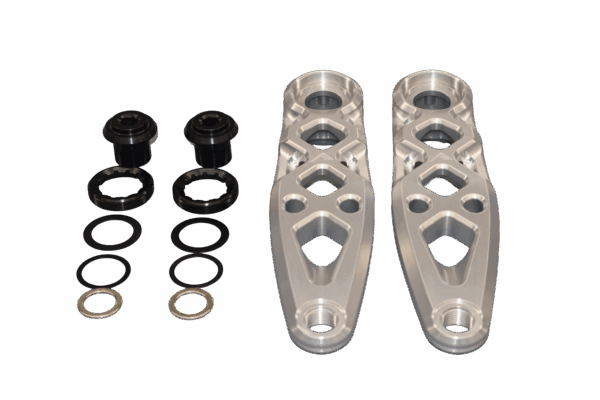

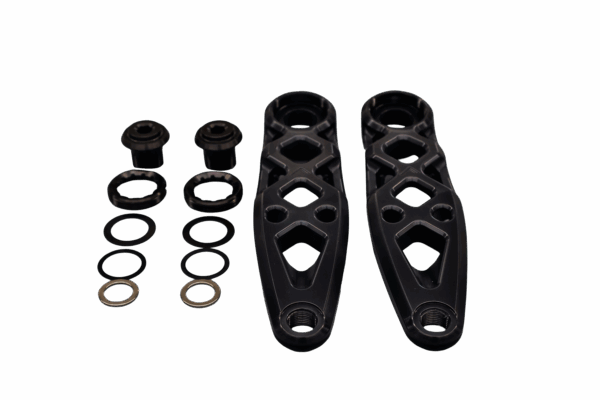

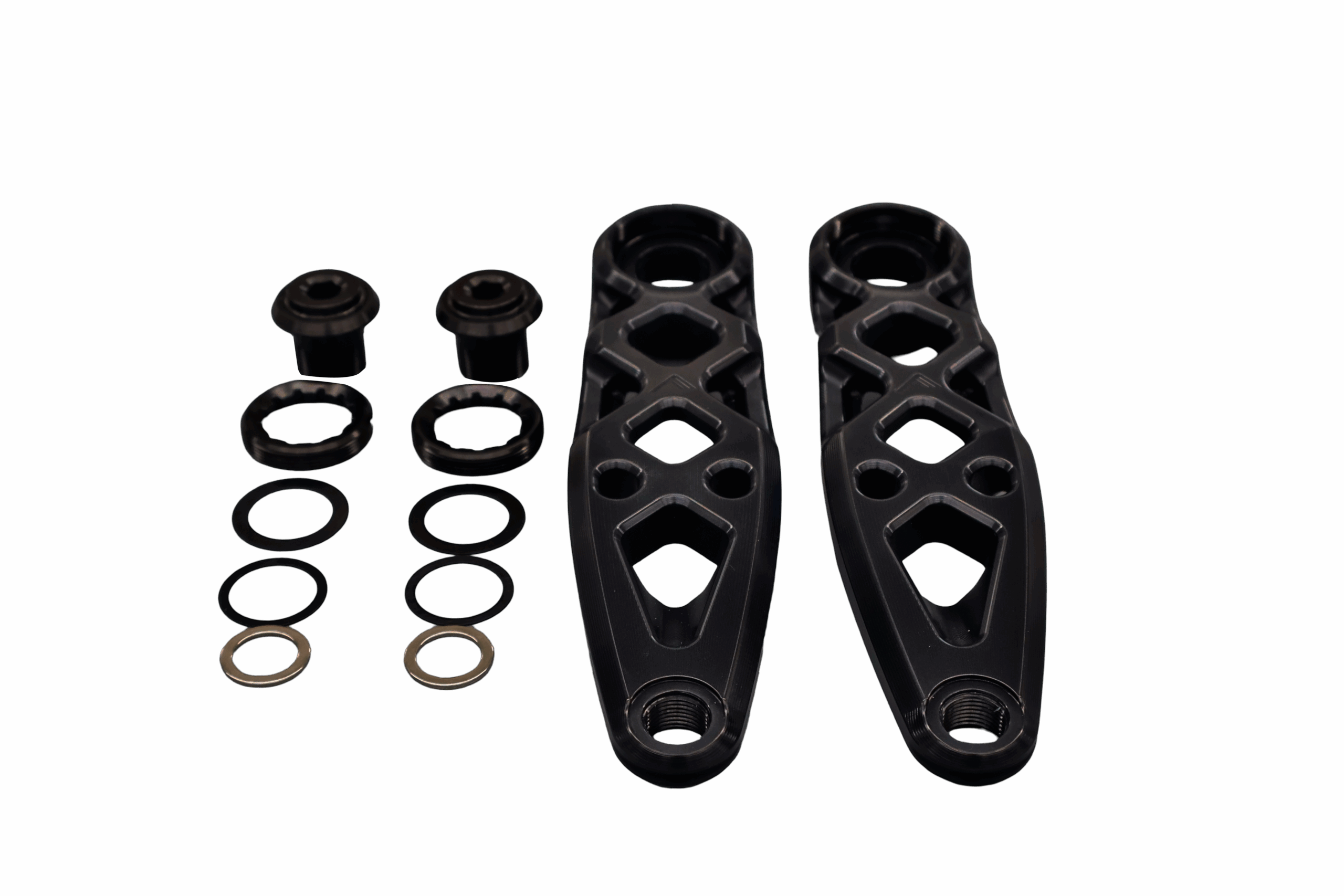

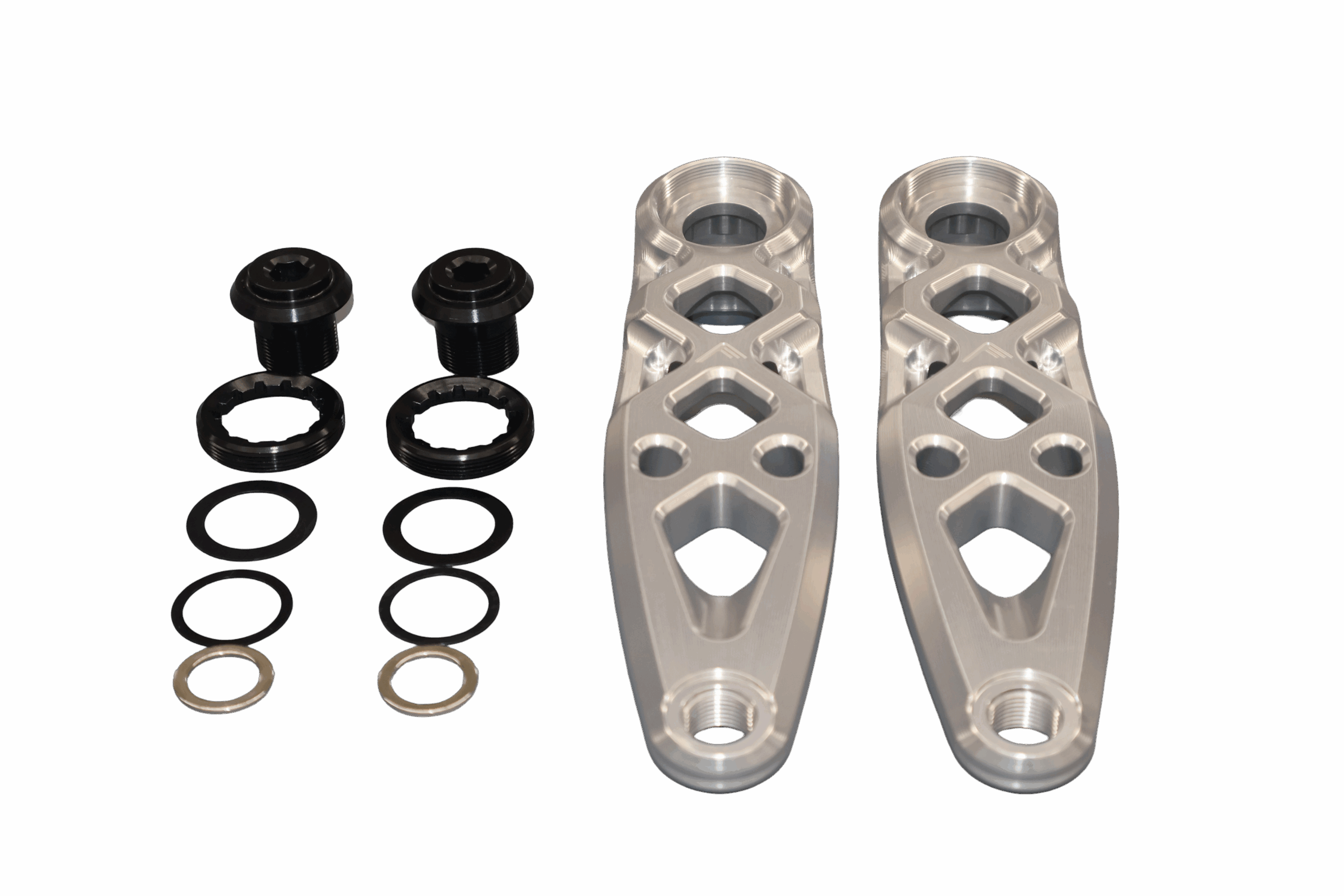

     Hardware: Crank Bolt, Extractor, Washers
     Q-Factor: 175.1 mm

Installation Specifications
  •  M19 x 1, 8 mm hex key, 40 N∙m installation torque
  •  M33 x 1 LH, FR-5.2 cassette tool, 10 N∙m installation torque
